Tip

Using Fresh Air, recirculation, and HVAC controls

3 months ago

The HVAC is much improved since we took delivery last November. In that early version, it would do a full-throttle switch from heat to cool at the set temp: “Hey honey, can you turn down the heat a bit?” Sure—BAM—arctic blast! I had a good bit of correspondence with Pebble on this and they made improvements. I hope the next version does offer day/night scheduling. I’ve also suggested a dehumidification mode.

We’ve also found the Fresh Air feature (available from the bedroom switch, not on the iPad—why not?) to be very useful. I’ve used it on hot tows to keep interior temp down. We’ve also run the HVAC for the last 30 minutes of a tow to condition the cabin. It’s great to be able to initiate that from the tow vehicle on the iPad or iPhone.

Bathroom temp and humidity is another issue. We keep the gray door latch lever down to hold the door open an inch for circulation with the vent fan on. The Pebble self-levels so well that the door doesn’t swing unintentionally.

hvac fresh-air bathroom humidity climate-control

25 comments

2mo ago

It would logically be in the AeroBox, but I’m in travel-camping mode and not intentionally taking things apart.

2mo ago

One thing to keep in mind is that pushing the Fresh Air button will turn off the cabin temperature button in the app. I’ve already reported that issue, as sometimes I just want the air to blow but don’t want to pull in hot air during the summer.

2mo ago

On the iPad, you can turn on just the fan and it is called Recirculate Air. You can also change the fan speed. That’s equivalent to the Fresh Air button by the bed. 😜

But I agree, climate and humidity control in the bathroom is a problem. If you keep the bathroom door closed and the AC is on in the cabin, then open the bathroom door, you get hit by a blast of hot, moist air.

2mo ago

Pretty sure recirculate means just that: recirculate inside air, much like in an automobile. Fresh brings in outside air at ambient temp.

2mo ago

You can do the same as the Fresh Air button on the iPad on the Cabin Temp page by:

Turning off the AC
Setting the fan speed to 1
Setting Recirculate to “Fresh” (tap the button once it’s on and it toggles between Recirculate and Fresh).

If you watch that page when you hit the physical button, you can see it make the same changes.

2mo ago

Thanks, good to know. We use Fresh Air at night, and I’m happy for the bedroom switch.

2mo ago

I’ll keep using the switch. Great info!

2mo ago

Great info! Thanks!

2mo ago

On second thought, is Recirculate Air just moving inside air while the Fresh Air button brings in outside air? Now I want to know how each of those systems work.

2mo ago

You’ll have to do worse for me to hate you. 😉

2mo ago

I’m leaving for five days tomorrow. I am going to check this out, switch back and forth, and see if I notice a temperature difference.

2mo ago

That is the purpose of Fresh Air: to bring in outside air at outside temperature without cooling or heating it. I use it extensively. It saves energy and negates the need to open windows or the door when you want outside air without outside noise or dust.

2mo ago

According to Pebble support:

The Fresh Air function pulls fresh air in from outside to circulate the air in the travel trailer. It does not engage the A/C compressor, making it suitable for use while sleeping.

You can control it using the bedside switchpack in the Room Flip area, alongside the controls for Lights and Windows.

2mo ago

Disappointingly, I don’t find evidence of a cabin air filter in the HVAC system.

2mo ago

The cabin air filter is inside the indoor unit behind the panel below the stove. Getting to it to change it is not easy. Apparently, they intended it to only be changed during yearly maintenance.

2mo ago

Thanks. That panel fell off early in this trip and is now held in place by Velcro, so mine will be easy to access.

2mo ago

Yeah, no cabin air filter would be an issue. Any idea where the Fresh Air intake originates?

2mo ago

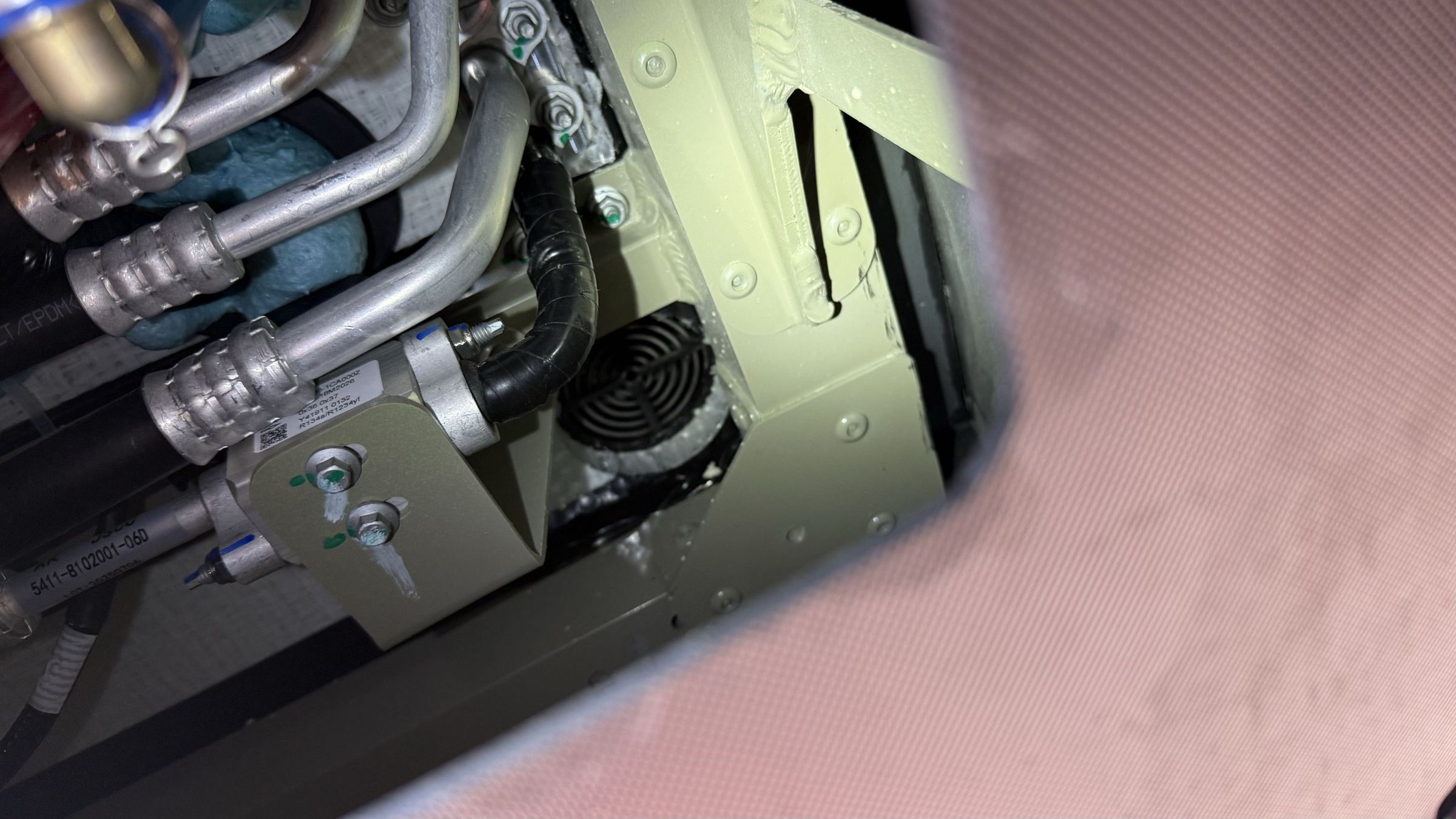

Fresh Air intake is just below the sink area, right next to the low-point plumbing drains. This is also the area where the HVAC condensate drain hose is.

2mo ago

Or behind the panel in the galley that doesn’t open?

2mo ago

I’d also like to pinpoint the two sources of condensate created by the Pebble HVAC. Water just seems to trickle down across the trailer frame and puddle not necessarily where I would prefer. It would be nice if it has a pinpoint source and could be captured or rerouted, but it may just be dripping off HVAC components.

2mo ago

I think the owner above is right, though let us know. I’m guessing the Fresh Air button is only by the bed (and desk area, too?) for a tech or energy reason. Maybe it was an excellent afterthought. I loved it camping when it was 80 during the day and in the 50s at night!

2mo ago

Don’t you think there has to be a filter on any air systems except the shower/stove vent? I love a mystery and won’t worry about it until about a year of ownership.

Just finished filling my trench where we ran 50-amp service at home to my Pebble! I’m so excited it’s embarrassing. Finally home for an extended period and happy to get into the mods and decorating.

2mo ago

Great information. Thanks!

2mo ago

Fresh Air is on the iPad. If you touch in the middle of the “Recirculate Air” button, it toggles between Recirculation and Fresh.

2mo ago

It is confusing, but that “Fresh Air” vs. Recirculation is when using heat or air conditioning. Notice that it is available only with Climate active. The bedroom-switch Fresh Air does not run the heat pump.
